HomeAlfred-HE Healthcare Kiosk
Healthcare providers are able to offer patients a streamlined check-in process with shorter wait time. Patients use this healthcare kiosk to check in for their appointment and to fill out medical forms, respond to surveys, make payments, schedule appointments, etc.
SHARE
OVERVIEW
Patient Check-in

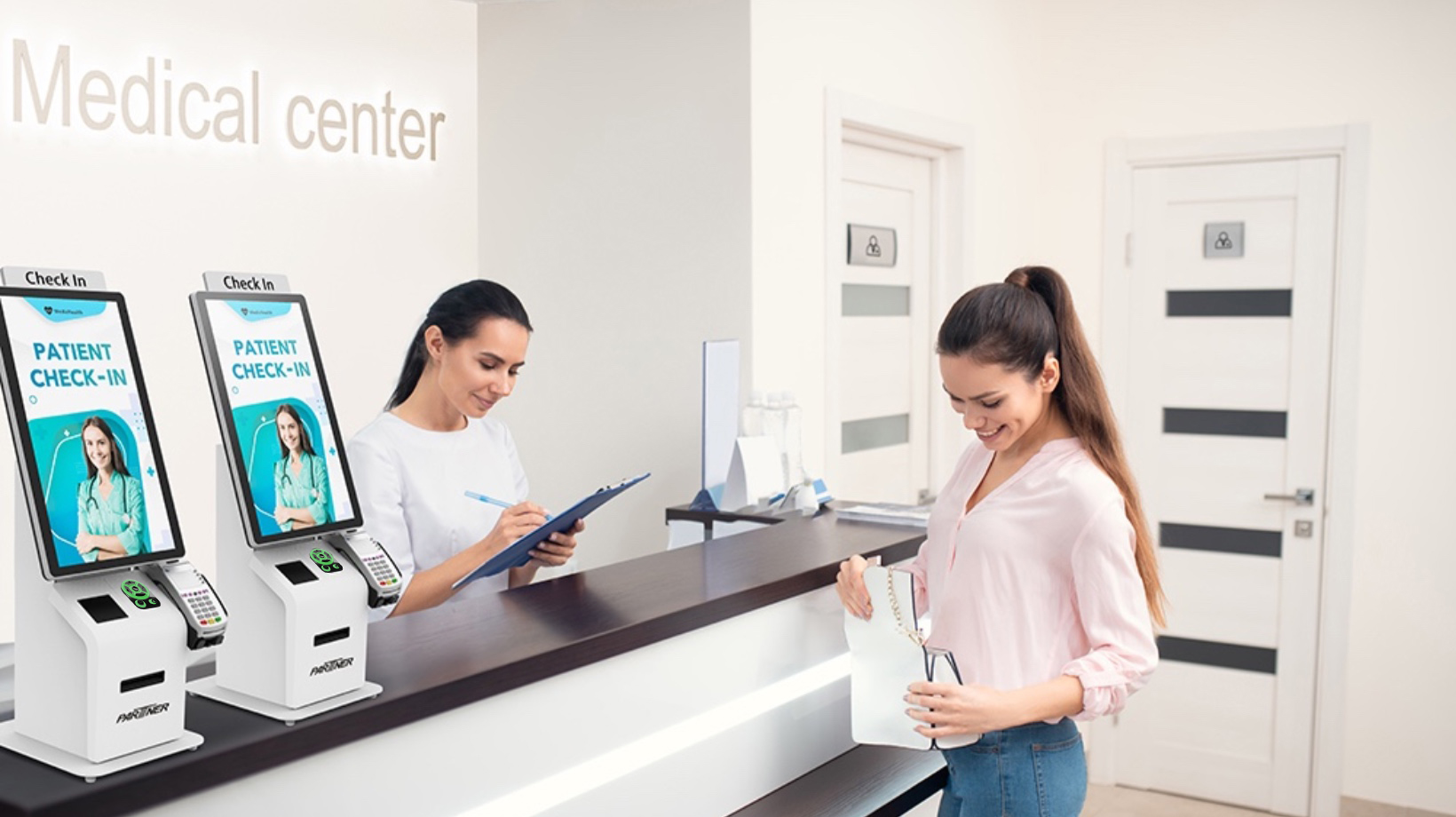

Offer patients the convenience of using a kiosk to check in instead of waiting in line. Alfred-HE kiosk with a touch display offers industrial grade performance with a high-quality design for an efficient and interactive user experience in hospitals, clinics, doctors offices, labs, dental offices and pharmacies.
- Reduce lines and waiting times
- Effiecient digital data collection
Floor Stand or Countertop Stand.
It’s Your Choice

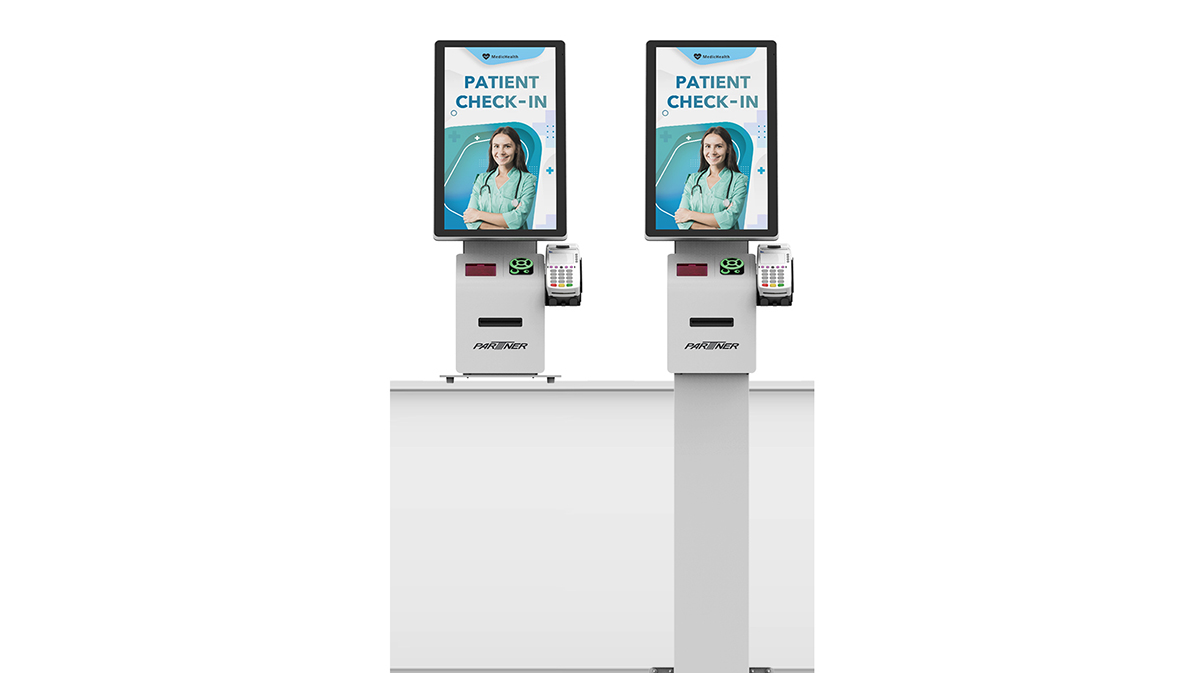

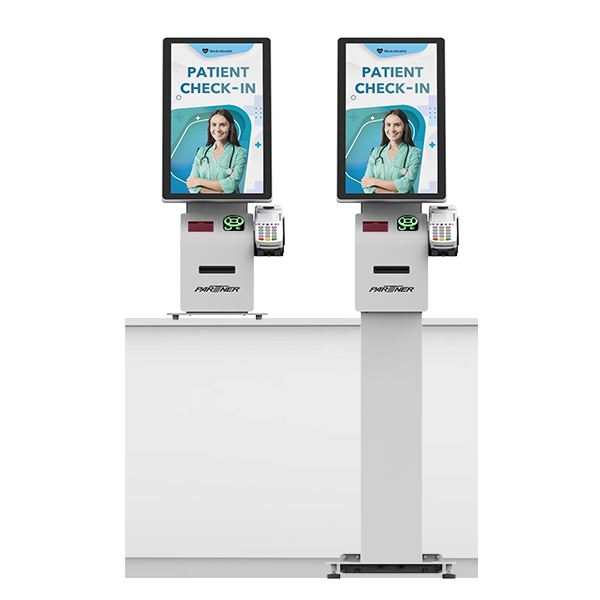

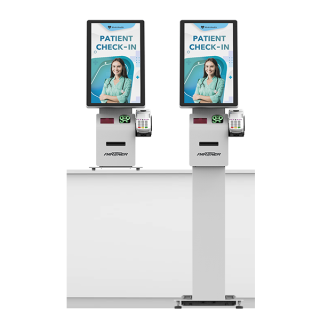

Floor space comes at a premium and space is limited in many environments. That’s why we designed Alfred to take up minimum space. Choose between a floor stand or a counter top version to meet your space requirements. A VESA wall mount is also available and the terminal can be mounted in portrait of landscape mode.
Durable Design with Integrated Peripherals

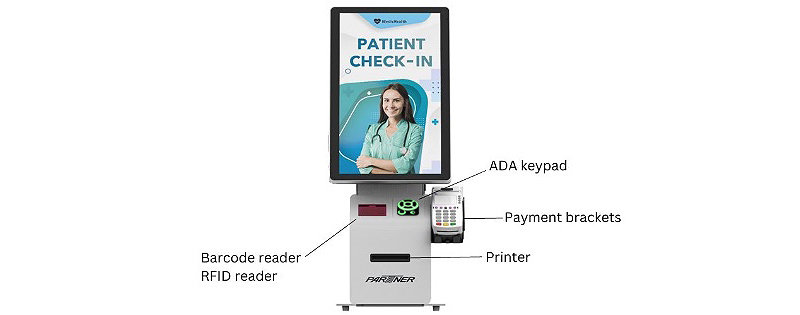

A large selection of peripherals allows you to configure Alfred-HE to meet your specific needs. Choose between different payment brackets, lockable 3-inch thermal printer, barcode reader, RFID reader, camera, and ADA keyboard to build the solution your need. All peripherals are fully integrated and designed for commercial use.
Colored Led Indicators
Customizable LED lights gives the kiosk a cool vibe, but most importantly communicates the status of the kiosk (e.g. kiosk is open/closed, patient needs help). This allows your staff to quickly react and take care of patients who need assistance. It is available in ten different color modes.
Privacy Protection & Sanitation
Partner Tech offers a wide range of peripherals that protects your kiosk, including privacy screen protectors for HIPAA compliance and an UV-C light and hand sanitizer dispenser to reduce the risk for infection.
Key Features
- 15.6" or 21.5″ full HD display
- Efficient, high speed processors, including Intel Kaby Lake i3 and i5
- High speed M.2 SSD for maximum performance and reliability
- Available for Windows and Android
- Ethernet, Wi-Fi (option) and Bluetooth (option) connectivity
- Integrated 3-inch thermal printer & bar code scanner
Optional Features
- Available with several different payment brackets
- RFID reader
- Camera
- ADA keyboard
- Colored LED indicators
- UV-C light for sanitation & automatic hand sanitizer dispenser
Interested in Learning More about Partner Tech Products?
Contact us now and we'll be in touch shortly.
| Item | Alfred-HE AD-156 (15.6") & AD-215 (21.5") | ||||
| Stand | Counter top stand or floor stand | ||||
| Processor | Intel® Core™ i3-7100U Intel® Core™ i5-7300U |
Intel®Celeron®J3455 | ARM RK3399 | ||
| Memory | DDR4 4GB to 16GB | DDR3L 4GB to 8GB | 4GB LDDR4 on board | ||
| Storage | M.2 PCIe Gen3.0 x2 SSD | M.2 SATA SSD | 32GB eMMC + 1 x Micro SD card slot supports up to 256GB | ||
| 128G to 256G | |||||
| Operation System | Windows 10 IoT LTSC (64bit), Linux (Ubuntu) | Android 9.0 | |||
| Screen Size | 15.6 & 21.5" | ||||
| Resolution | 1920 x 1080 | ||||
| Screen Position | Vertical or horizontal | ||||
| Touch Panel | PCAP, Multi-touch | ||||
| Audio | 3W speaker | ||||
| Wi-Fi (option) | 2.4GHz/5GHz (IEEE 802.11a/b/g/n/ac) | 2.4GHz/5GHz (IEEE 802.11a/b/g/n/ac) | |||
| BT (option) | BT 4.2 (supports BLE) | BT 4.2 (supports BLE) | |||
| Adaptor | 12V, 120W/100~240V | 12V, 65W/100~240V | |||
| I/O Interface | |||||
| USB | 4 x USB 3.0 (USB3.0/2.0) | 1 x USB3.0 (OTG) | |||
| 5 x USB2.0 | |||||
| COM | 2 x RJ45 serial ports, 0V/5V/12V selection under BIOS (COM1, COM2) | 2 x RJ45 serial ports, 0V/5V/12V selection by jumper setting | |||
| Ethernet | 2 x LAN IEEE 802.3 10/100/1000 Mbps | ||||
| RJ11 | 1 x RJ11 port supports 2 cash drawers with 24V / 12V by jumper setting | ||||
| Audio | 1 x Audio (1 x Line-out) | ||||
| HDMI | 1 x HDMI | ||||
| VGA | 1 x VGA | ||||
| Emvironment | |||||
| Operating Temperature | 5~40°C | ||||
| Storage Temperature | -20°C to +60°C | ||||
| Operating Humidity | 15 to 85% without condensation | ||||
| Storage Humidity | 15 to 85% without condensation | ||||
| Peripherals | |||||
| Barcode Scanner | 1D/2D barcode scanner | ||||
| Printer | 3" thermal printer: RP-700 (default) | ||||
| Options: Epson TM-70, Star mC-Print2 | |||||
| Optional Accessories | |||||
| EMV Terminal Bracket | Ingenico IPP-320, LANE3000, IUC-285 | ||||
| Verifone VX850A | |||||
| PAX 300 | |||||
| Camera | 5MP | ||||
| RFID Reader | 13.56MHz | NRF 13.56MHz | |||
| Keypad | Assistive, audio enabled keypad offering menu navigation | ||||
| Wheel Kit | Four wheels & one handle | ||||
