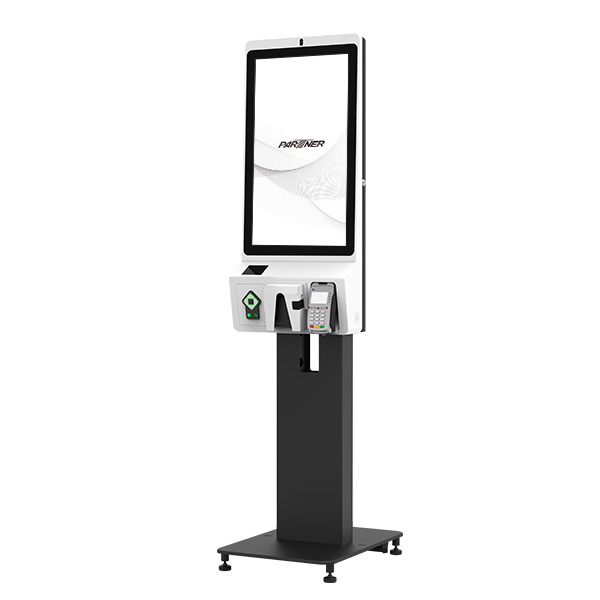

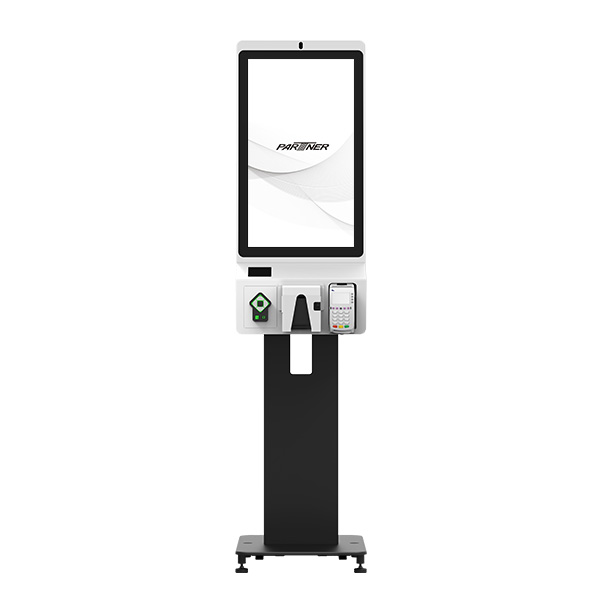

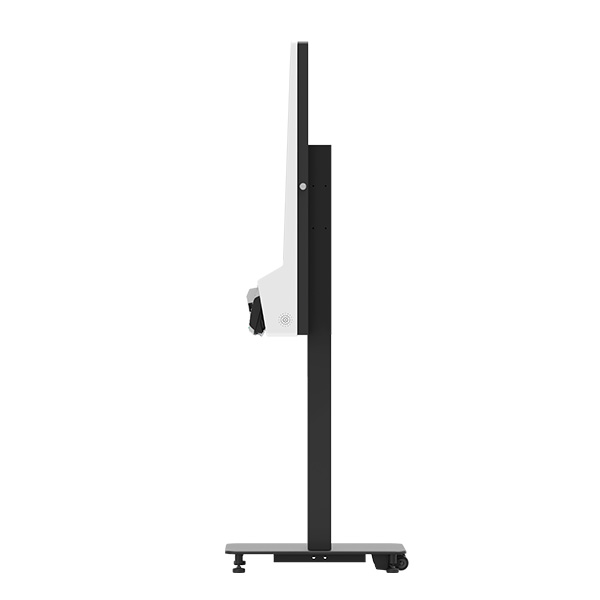

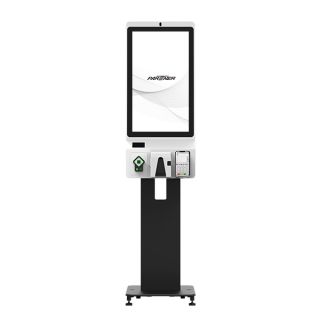

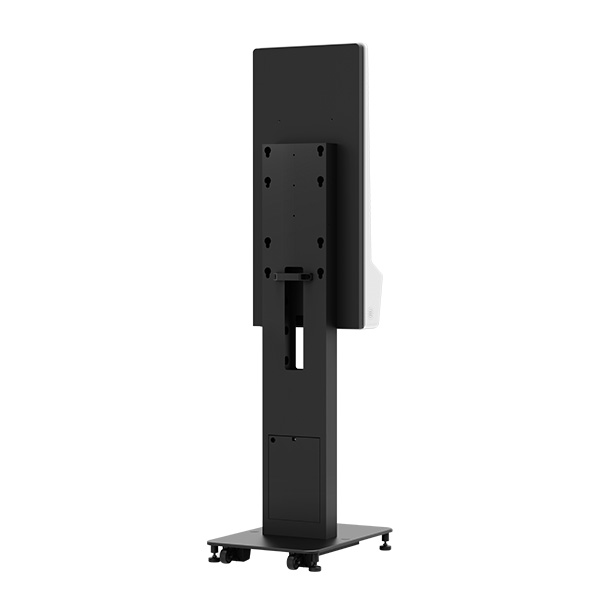

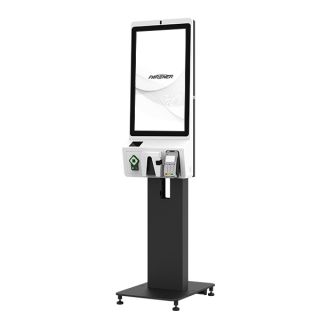

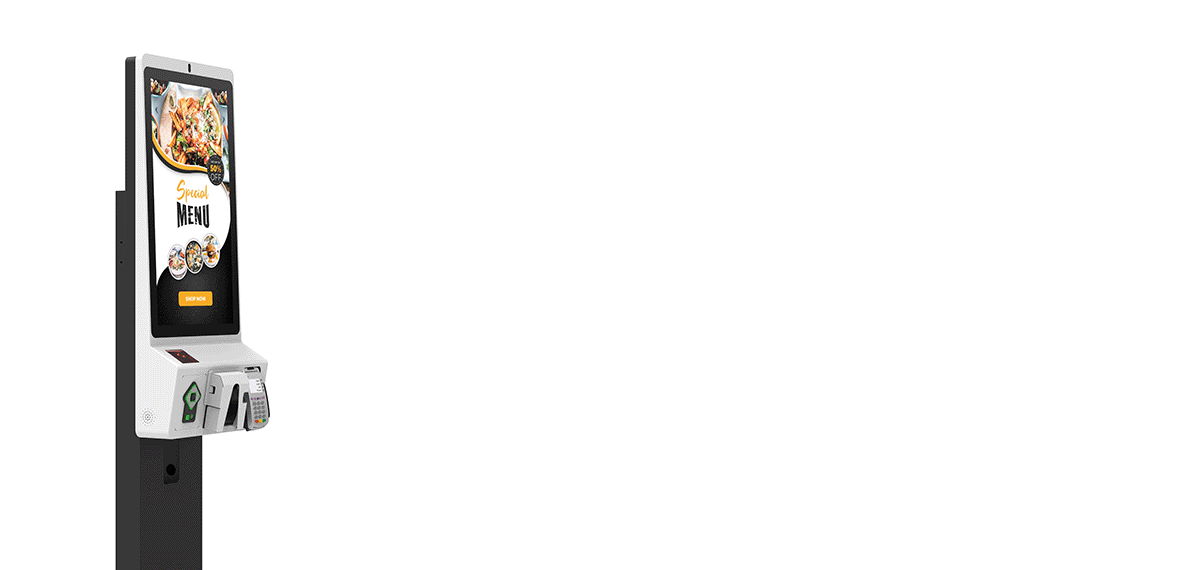

HomeK27 II Kiosk
Save on labor costs, reduce wait times, and increase capacity without adding extra staff with Partner Tech's self-ordering kiosk for use in quick service restaurants and other hospitality and retail venues.
SHARE
OVERVIEW
Level Up the Customer Experience
K27 II offers the convenience of self-service and allows customers to skip the lines. It enables customers to take control of their orders, select add-ons, enjoy personalized offers, and redeem award points – while the staff can be assigned to other tasks.
Use in quick service restaurants, at the mall, and in other hospitality and retail environments.
-
Happy Guests
Customers enjoy the convenience of self-service with less waiting in line. -
Reduced labor costs
Increase capacity and reduce lines without adding extra staff. -
More revenue
Service more guests and increase the average order size.

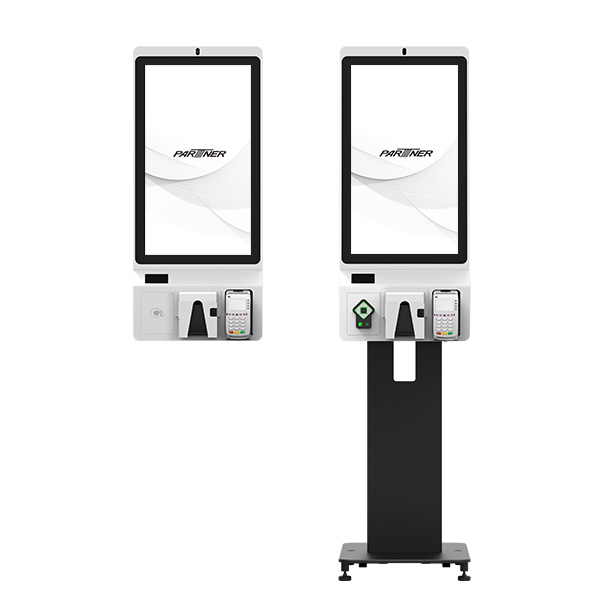

Select a Kiosk that Fits Your Space
Choose between:

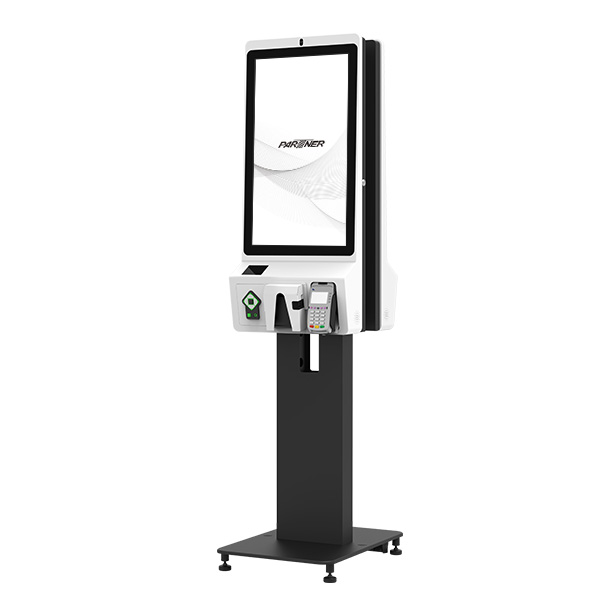

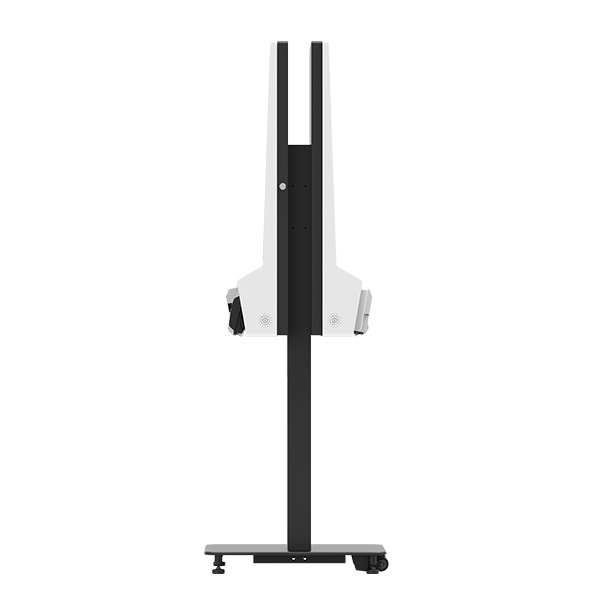

Wall mount | Floor stand | Double-sided
Customize with Integrated Peripherals
Customize the self-ordering kiosk solution to your needs with a large selection of peripherals – with the option of adding more functionality later.
- Barcode scanner
- NFC/RFID reader
- Brackets for payment terminals
- Thermal printer
- ADA keypad
- 5MP camera
K27 II comes in standard white color, but the color and shape of the enclosure can be customized to match your company's brand for larger order volumes.
Powerful Speed and Performance
K27 II offers the flexibility to choose between Windows, Linux Ubuntu and Android. The high-performance Intel and Rockchip processors ensure that the ordering process goes smoothly and without delays.
Based on the M.2 SATA solid state drive and fanless technology, the K27 II is an ultra-reliable kiosk with zero moving parts.
Easier Maintenance with Modular Design
K27 II is engineered to provide maximum reliability and uptime with a rugged and lockable enclosure that protects the kiosk from damage.
Easy-to-replace modules keep repair costs down while minimizing interruptions to your business.
Easy-to-replace modules keep repair costs down while minimizing interruptions to your business.
Key Features
- Wall mount, floor stand, double-sided operation
- 27" (1920x 1080) touch display
- Multiple payment options (MSR, chip & PIN and contactless)
- Compact, sleek design
- Modular and customizable for your needs
- Support for Windows 10/11, Linux Ubuntu 22.04 and Android 11
Optional Features
- Barcode scanner
- NFC/RFID reader
- Brackets for payment terminals
- Thermal printer
- ADA keypad
- 5 MP camera
- BT and Wi-Fi connectivity
Interested in Learning More about Partner Tech Products?
Contact us now and we'll be in touch shortly.
| Item | K27 II | |||
|---|---|---|---|---|
| Display | 27", 16:9, 1920 x 1080, 300 nits 27", 16:9, 1920 x 1080, 650 nits (option) |
|||
| Touch | PCAP Touch | |||
| CPU | Alder Lake-P Intel® Celeron® 7305 Intel® Core™ i3-1215U Intel® Core™ i5-1245U, vPro Intel® Core™ i7-1265U, vPro |
Elkhart Lake Intel® Celeron® J6412 |
Kaby Lake-U Intel® Core™ i3-7100U Intel® Core™ i5-7300U |
Rockchip RK3399 |
| Memory | DDR4 4GB, 8GB, 16GB, 32GB | LDDR4 4GB | ||
| Storage | M.2 PCIe SSD: 128GB / 256GB / 512GB | eMMC 32GB + 1x micro SD card slot (up to 128GB) |
||
| I/O Interface | 1 x Gigabit Ethernet | |||
| 1 x AC male power socket | ||||
| 1 x power switch button | ||||
| Speakers | 2 x speaker (3W) | |||
| Printer | 3" thermal printer | |||
| Peripheral Options | 2D barcode scanner | |||
| EMV terminal bracket | ||||
| 5MP camera | ||||
| RFID / NFC reader | ||||
| ADA keypad | ||||
| Floor stand (including wheels & handle) | ||||
| VESA wallmount bracket | ||||
| Wi-Fi / BT (option) | Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2 | 2.4GHz/5GHz (IEEE 802.11a/b/g/n/ac), BT 4.2 (supports BLE) | ||
| Operating System | 1. Windows 11 IoT Enterprise GAC (64bit) ready 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) 3. Linux Ubuntu 22.04 |
1. Windows 10 IoT Enterprise LTSC 21H2 (64bit) 2. Linux Ubuntu 18.04 |
Android 11 | |
| TPM & vPro | 1. Intel vPro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) | 1. Intel vPro (i5 CPU only) | N/A |
| 2. S/W TPM 2.0 (BIOS) | 2. S/W TPM 2.0 (BIOS) | |||
| Power Supply | AC-In 100~240V / DC-Out 12V, 120W | AC-In 100~240V / DC-Out 12V, 90W | ||
| Reliability | System operating temperature: 0~40°C / 32~104°F | |||
| System humidity: 15% ~ 80% | ||||
| Storage temperature: -20~60°C /-4~140°F | ||||
| Dimensions (W x H x D) |
Wall mount: 415.2 x 945.6 x 163.19 mm / 16.35 x 37.23 x 6.43 in Floor stand: 550 x 1900 x 610 mm/ 21.65 x 74.80 x 24.02 in |
|||
| Weight | Wall mount: 23 kg / 50.71 lb Floor stand: 57 kg / 125.67 lb |
|||
