OVERVIEW
Key Features
- Powerful Intel® Processor for your POS software and applications.
- Bezel free 15" TFT-LCD, LED backlight, Projected Capacitive Touch (Multi Touch).
- DDR3L memory supports up to 16GB
- Storage SSD (Default) / mSATA or HDD (Optional)
- Flexible modular design and optional customer display.
- Convenient compact POS and 45° tilt angle.
Optional
- Printer Stand
- 2 x 20 VFD Display
- 9.7", 15" 2nd displays
- SATA HDD / SSD
Interested in Partner Tech Products?
| Item | E-POS-XIIV2-I5 | |||
| Description | E-POS XTREME II V2 I5, 4G, PCAP, UK, BLACK | |||
| Display | 15” Active TFT color LCD, resolution 1024 x 768, brightness 350cd/m², LED backlight | |||
| CPU | Intel® Core™ i5-4210U 1.70 GHz up to 2.70 GHz, 3M Cache Intel® Core™ i5-4250U 1.30 GHz up to 2.60 GHz, 3M Cache Intel® Core™ i5-4260U 1.40 GHz up to 2.70 GHz, 3M Cache Intel® Core™ i5-4300U, 3M Cache, 1.90 GHz up to 2.90 GHz | |||
| CPU(optional) | Intel® Core™ i5-6360U 2.00 GHz up to 3.10 GHz, 4M Cache | |||
| Memory | 4GB DDR3L 1333/1600MHz Optional up to 16GB, 2 x Slot (Standard 4 GB RAM) | |||
| Ethernet | - | |||
| LAN | Reatek RTL8111H 1000M | |||
| Storage | Storage SSD (Default) / mSATA or HDD (Optional) | |||
| Expansion Slot | 1 * Mini PCIE(WIFI, 4G module), 1 x EXP PCIE | |||
| Operating System | Windows/Linux | |||

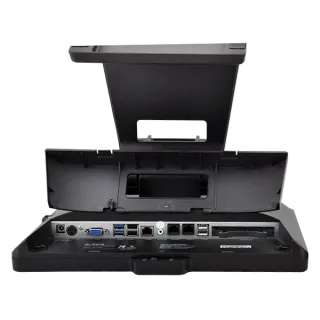

| External I/O | 1 * VGA 3 * USB 2.0, 2 * USB 3.0 2 * Serial (RS-232) Ports 1 * RJ45 1000M LAN 1 * Line out, 1 x Mic 1 * 12V DC IN | |||
| Durability Rating | - | |||
| Display Support (optional) | Supports second Display | |||
| Peripherals (optional) | 3-track MSR, VFD Display 2X20 characters(COM) | |||
| VESA Mounting: | Yes | |||
