Alfred
AD-156

Level up your service with a self-service kiosk at the checkout. Alfred AD-156 automates ordering and checkout at restaurants or stores and speeds up check-in and registration at hospitals and corporate offices.

SHARE


2

The Convenience of Self-Service Checkout

Offer your customers the convenience of a self-service kiosk instead of waiting in long lines. Alfred AD-156 self-service kiosk with a touch display offers industrial grade performance with a high-quality design for an efficient and interactive customer experience in all types of environments.
  • Reduce lines and waiting times.
  • Increase throughput during peak hours
  • Increase average order size
  • Improve order accuracy


3

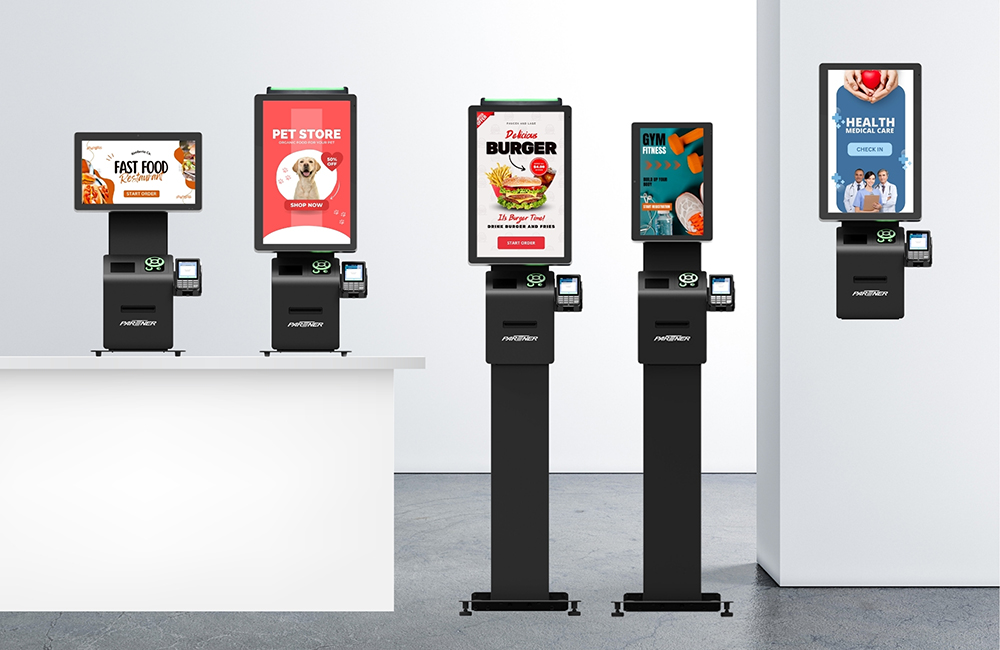

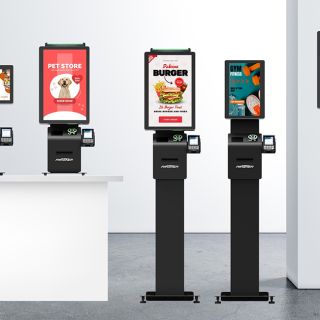

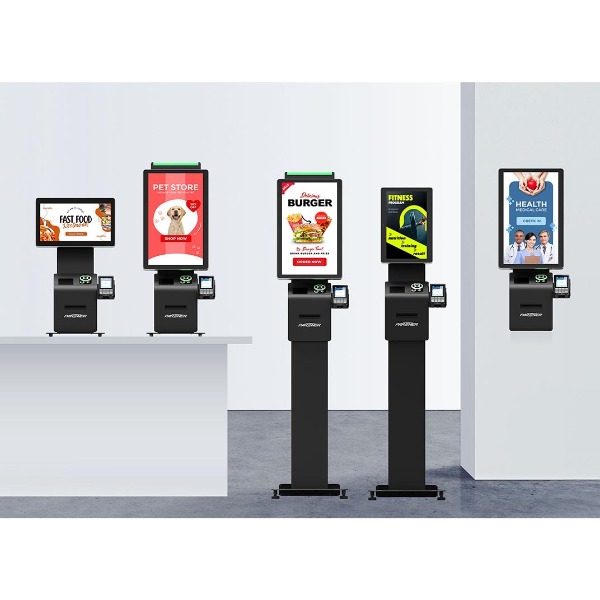

Floor Stand or Countertop Stand.
It's Your Choice

Floor space comes at a premium and space is limited in many retail environments. That's why we designed Alfred to take up minimum space. Choose between a floor stand or a counter top version to meet your space requirements. A VESA wall mount is also available.



未命名設計 (50)

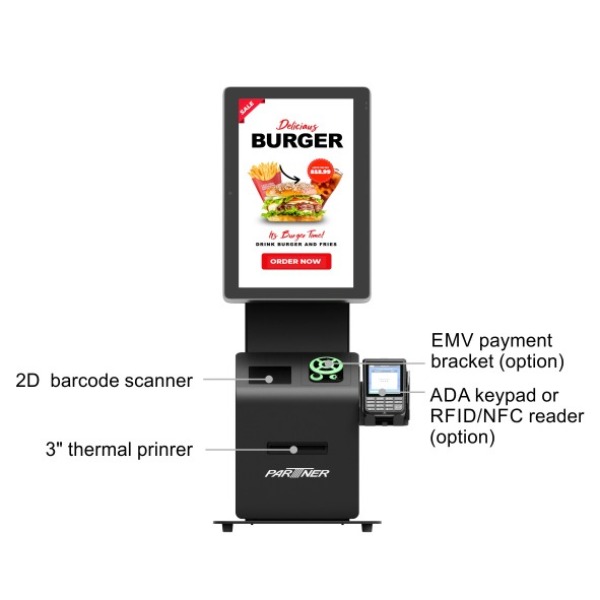

Durable Design with Integrated Peripherals

A large selection of peripherals allows you to configure your Alfred Kiosk to meet your specific needs. Choose between different payment brackets, lockable 3-inch thermal printer, barcode reader, RFID reader, camera, and ADA keyboard  to build the solution your need. All peripherals are fully integrated and designed for commercial use.


1

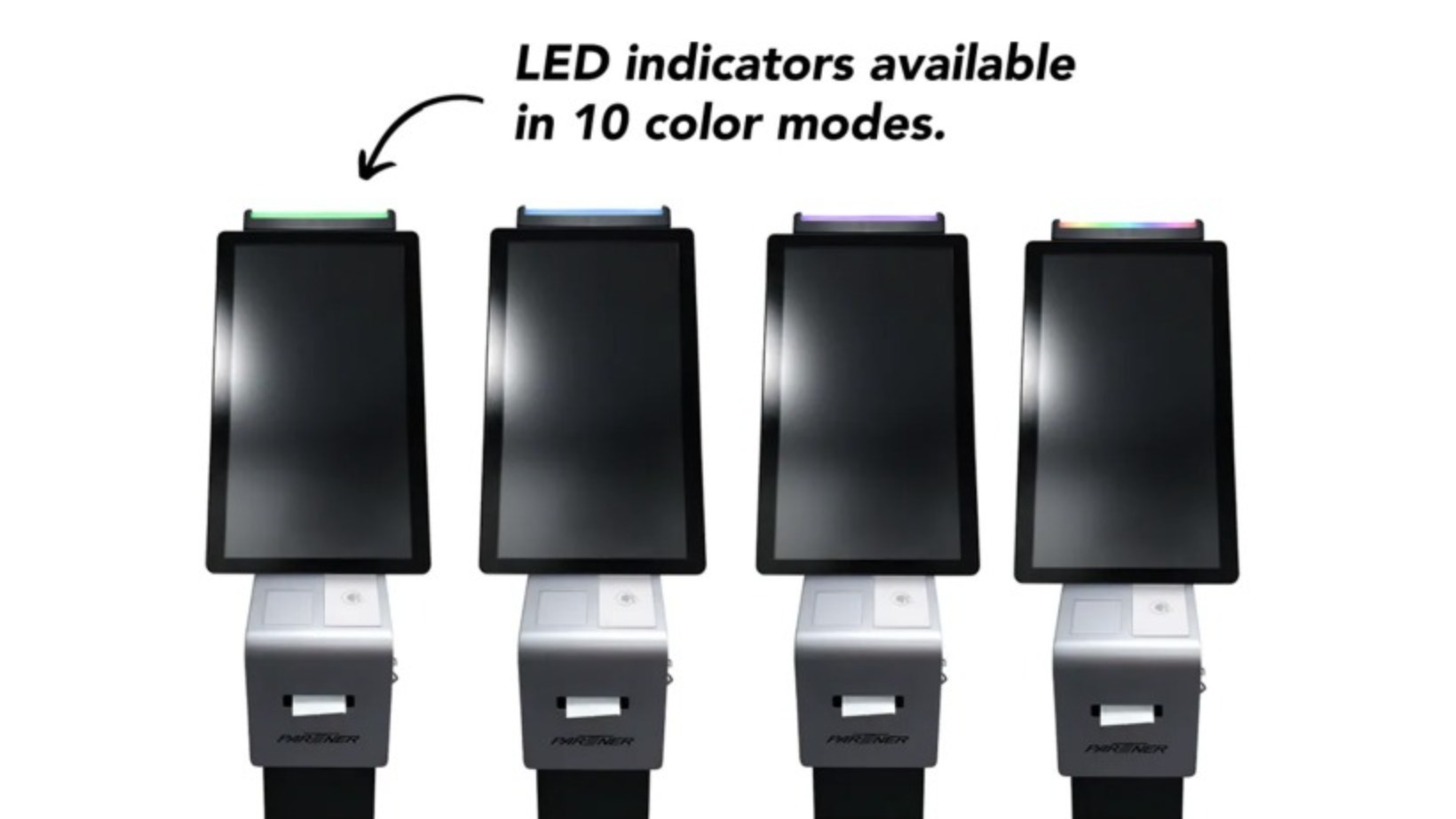

Colored Led Indicators

Customizable LED lights gives the kiosk a cool vibe, but most importantly communicates the status of the kiosk (e.g. kiosk is open/closed, customer needs help). This allows staff to quickly react and help customers who need assistance. Available in 10 color modes.




Key Features


  • 15.6″ full HD display
  • Efficient, high speed processors, including Intel Kaby Lake i3 and i5
  • High speed M.2 SSD for maximum performance and reliability
  • Available for Windows and Android
  • Ethernet, Wifi (option) and Bluetooth (option) connectivity
  • Integrated 3-inch thermal printer & bar code scanner
  • ADA compliant

Optional Features

  • Available with several different payment brackets
  • RFID reader
  • Camera
  • ADA keyboard
  • Colored LED indicators
  • UV-C light for sanitation & automatic hand sanitizer dispenser


Interested in Partner Tech Products?


Item AD-156
Display 15.6" 16:9 1366 x 768 (220 nits),
15.6" 16:9 1920 x 1080 (400 nits) option
Touch PCAP Touch
CPU Alder Lake-P Elkhart Lake Kaby Lake-U Rockchip RK3399
Intel® Celeron® 7305 Intel® Celeron® J6412 Intel® Core™ i3-7100U
Intel® Core™ i3-1215U
Intel® Core™ i5-1245U, vPro Intel® Core™ i5-7300U
Intel® Core™ i7-1265U, vPro
Memory DDR4 4GB, 8GB, 16GB, 32GB LDDR4 4GB
Storage M.2 PCIe SSD: 128G / 256G / 512G eMMC 32GB + 1x Micro SD Card Slot (up to 128GB)
I/O Interface 3 x serial ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) 2 x serial ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) 2 x serial ports, RS232 (RJ45), 0V/5V/12V selected in setting (COM1, COM2)
1 x Intel LAN
(IEEE 802.3 10/100/1000 Mbps)
1 x LAN
(IEEE 802.3 10/100/1000 Mbps)
2 x LAN
(IEEE 802.3 10/100/1000 Mbps)
1 x LAN
(IEEE 802.3 10/100/1000 Mbps)
4 x USB 3.2 +
2 x USB 2.0
3 x USB 3.2+
3 x USB 2.0
4 x USB 3.0 1 x USB3.0 (OTG) +
5 x USB2.0
1 x Type-C (Data transfer + display) 1 x VGA 1 x micro SD Card
1 x RJ11 port support for 2 cash drawers with 24V / 12V by jumper setting
1 x DC+ 12V output
1 x DC +12V input
1 x audio (1 x line-out)
1 x HDMI
Speaker 1 x speaker (3W)
Printer 3" thermal printer
Barcode Scanner 2D barcode scanner
Peripheral Options MSR, EMV terminal brackets, 5MP camera, RFID / NFC reader, ADA keypad
LED status indicator (multi-color light bar)
Wheels kit: two wheels & one handle
Mounting Options Desktop stand, floor stand or wall mount (standard VESA)
Wi-Fi / BT (option) Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.2 2.4GHz/5GHz (IEEE 802.11a/b/g/n/ac), BT 4.2 (supports BLE)
Operating System 1. Windows 11 IoT Enterprise GAC (64bit) ready 1. Windows 10 IoT Enterprise LTSC 21H2 (64bit) Android 11
2. Windows 10 IoT Enterprise LTSC 21H2 (64bit)
3. Linux Ubuntu 22.04 2. Linux Ubuntu 18.04
TPM & vPro 1. Intel vPro (i5/i7 CPU only) S/W TPM   2.0 (BIOS) 1. Intel V-Pro (i5 CPU only) N/A
2. S/W TPM 2.0 (BIOS) 2. S/W TPM 2.0 (BIOS)
Power Adaptor AC-In 100~240V /
DC-Out 12V, 120W
AC-In 100~240V /
DC-Out 12V, 90W
AC-In 100~240V /
DC-Out 12V, 120W
AC-In 100~240V /
DC-Out 12V, 90W
Reliability System operating temperature: 0~40°C/ 32~104°F
System humidity: 15% ~ 80%
Storage temperature: -20~60°C/-4~140°F
Dimensions (Wx Hx D) Floor stand Landscape: 392 x 1424 x 401 mm / 15.4 x 56.1 x 15.8 in
Portrait: Portrait : 380 x 1511 x 401 mm / 15.0 x 59.5 x 15.8 in
Desk top Landscape: 392 x 671 x 324 mm / 15.4 x 26.4 x 12.8 in
Portrait: 290 x 752 x 324 mm / 11.4 x 29.6 x 12.8 in
