High Performance BOX PC

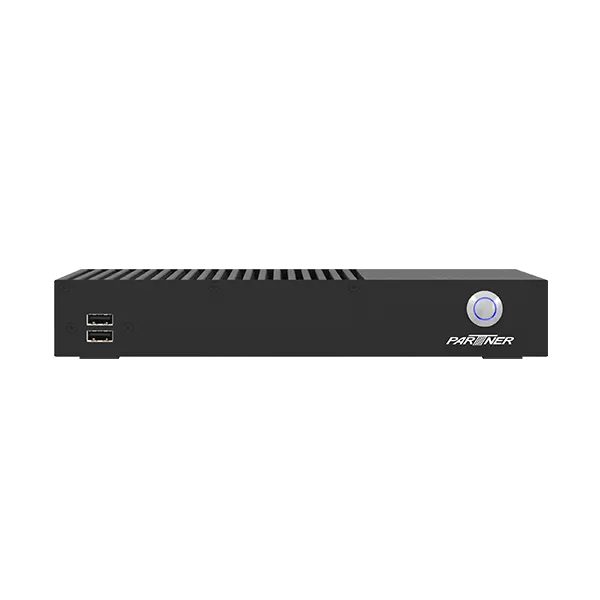

Meet Partner Tech’s ALFA Series, a compact box PC, specially designed for demanding retail and hospitality applications, featuring a fanless, noise-free computer with a large selection of I/O ports – ideal for use as a POS terminal or POS server or for integration with an open frame panel for digital signage and kiosk application and plenty of connections for printers, payment terminals, and other peripherals.
SHARE
OVERVIEW
Durable Design
The ALFA Series box PC is based on a fanless computer design and high-quality, industrial-grade components for maximum durability. The low-profile, durable die-cast aluminum casing provides good protection and optimized cooling of the computer.
Best-in-Class Performance
Powered by the latest Intel Tiger Lake/ Elkhart Lake/ Alder Lake-S processors, the ALFA Series delivers best-in-class performance with support for up to three independent displays (with Tiger Lake/ Alder Lake-S). Despite its compact size, the ALFA series can be configured with up to 1 TB M.2 PCIe SSD and 32GB DDR4 DRAM; ALFA Max series can be configured RAID 1 up to 1TB.
Available with Windows 11 and 10 and Ubuntu 22.04.
The Alfa Series
The Alfa series, available in 5 versatile versions:
Mini, Standard, Pro, Max and Max Pro.Designed to elevate your computing experience, this cutting-edge device boasts a sleek aluminum housing that exudes elegance and durability.
Alfa Mini
With the height only 45.1mm, Alfa-M is more aesthetic and space-saving. Yet Alfa-M is still capable to deliver sufficient performance for system building.
Support Multiple Displays
- Tiger Lake/ Alder Lake-S supports 3 independentDisplays (HDMI + Type C + VGA)
- Elkhart Lake supports 2 independentDisplays (HDMI + VGA)
Optional Peripherals
- Intel Wireless Module
The Intel Wireless module enables Wi-Fi 6 and BT 5.2 for even better connectivity.
- VESA Mount Bracket
An optional VESA bracket enables secure mounting onto a screen, wall, desk or under a counter.
Key Features
- Three Models: Mini, Standard, Pro, Max, Max Pro
- Windows 11 and 10 and Ubuntu 22.04
- Choose between Intel Alder Lakes-S, Elkhart Lake or Tiger Lake processor
- Up to 1 TB M.2 PCIe SSD (Alfa Mini/ Alfa/ Alfa Pro)
- RAID 1 up to 1TB (Alfa Max/ Alfa Max Pro)
- Durable die-cast aluminum casing
Optional Features
- VESA mounting bracket
- Wi-Fi 6 and BT 5.2
- Power USB module
Interested in Partner Tech Products?
| Item | ALFA-M | ALFA | ALFA-P | ALFA MAX | ALFA MAX PRO |
|---|---|---|---|---|---|
| CPU | Intel® Celeron® J6412 (Elkhart Lake) (Tiger Lake UP3) Intel® Core™ i3-1115G4 Intel® Core™ i5-1145G7, vPro Intel® Core™ i7-1185G7, vPro |
(Alder Lake S) ntel® Core™ i3-12100T, H610 Chipset Intel® Core™ i5-12500T, Q670 Chipset, vPro Intel® Core™ i7-12700T, Q670 Chipset, vPro |
|||
| Memory | DDR4 4GB, 8GB, 16GB, 32G | ||||
| Storage | M.2 PCIe SSD: 128G / 256G / 512G / 1TB | 2.5" SATA SSD: 128G / 256G / 512G / 1TB 2nd 2.5" SATA SSD (option) |
|||
| I/O Interface | 3 x serial ports, RS-232 (DB9), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | 4 x serial ports, RS-232 (DB9), 0V/5V/12V selected in BIOS (COM1, COM2, COM3, COM4) | |||
| 1 x LAN(IEEE 802.3 10/100/1000 Mbps) | 2 x Intel LAN(IEEE 802.3 10/100/1000 Mbps) | ||||
| 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | |||||
| 1 x DC +12V out | |||||
| 2 x USB 3.2 + 6 x USB 2.0 (Elkhart Lake) 4 x USB 3.2 + 4 x USB 2.0(Tiger Lake)(Alder Lake S) |
|||||
| 1 x DC + 12V input | |||||
| 1 x audio (1 x line-out) | |||||
| 1 x HDMI | |||||
| NA | 1 x Mic In | ||||
| 1 x Type-C (data transfer only)(Elkhart Lake) 1 x Type-C (data transfer +display)(Tiger Lake) |
NA | ||||
| 1 x VGA | 2 x VGA | ||||
| Wireless Option | Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 | ||||
| Power USB | N/A | 3 x 12V & 1 x 24V Powered USB | N/A | 3 x 12V & 1 x 24V Powered USB | |
| Display Support | 2 independent displays (HDMI + VGA)(Elkhart Lake) 3 Independent Displays (HDMI + Type C + VGA)(Tiger Lake) |
3 Independent Displays (HDMI + VGA x 2) | |||
| Operating System | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) | ||||
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | |||||
| 3. Linux Ubuntu 22.04 | |||||
| TPM & vPro | Intel vPro (i5/i7 CPU only) | ||||
| S/W TPM 2.0 (BIOS) | |||||
| NA | RAID (Q670 Chipset only) | ||||
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 65W(Elkhart Lake) AC-In 100~240V / DC-Out 12V, 90W(Tiger Lake) |
AC-In 100~240V / DC-Out 12V, 180W | AC-In 100~240V / DC-Out 12V, 120W | AC-In 100~240V / DC-Out 12V, 180W | |
| Reliability | System operating temperature: 0~40°C/ 32~104°F | ||||
| System humidity: 15% ~ 80% | |||||
| Storage temperature: -20~60°C/-4~140°F | |||||
| Dimensions (Wx Hx D) | 255 x 131.5 x 45.1 mm / 10.04 x 5.18 x 1.78 in | 255 x 131.5 x 63.1 mm / 10.04 x 5.18 x 2.48 in | 255 x 185 x 81.1 mm/ 10.04 x 7.28 x 3.19 in | ||
| Weight | 1.5 kg / 3.3 Ib | 1.8 kg / 3.97 Ib | 3.5 kg / 7.11 lb | ||
