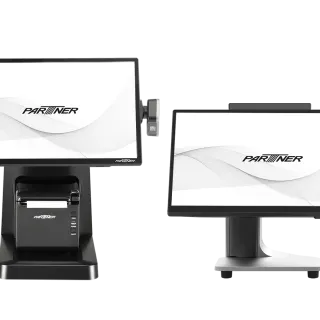

HomeAudrey A5 II
All-in-one Touch Screen POS Terminal
Audrey II, based on our most loved POS terminal, but equipped with more processing power, updated looks, ultra-slim bezel, optically bonded touchscreen, Windows 11, and more.
SHARE
OVERVIEW
-
Better, Brighter Display
A slimmer (7 mm) bezel and optical bonding results in a brighter display. -
More Power
Cutting-edge speed with Windows 11 and Intel 11 Gen Tiger Lake CPU. -
POS Ready
Customizable with peripherals and large selection of interfaces.
Sleek Design with Ultra-slim Bezel
Based on Audrey's elegant design, but with a significantly slimmer bezel (only 7 mm), Audrey II looks even more appealing than its predecessor and matches any type of modern store interior. All cables are neatly concealed inside the base to keep the counter clutter free.
Brighter Display with Optical Bonding and Anti-Glare Glass
Audrey II is available with a full HD 15.6-inch on-cell touch display. The screen technology has been further improved and has an optically bonded display, which results in a significantly brighter display and better touch precision. Anti-glare glass provides a better image, causing less strain on the eyes. Audrey II supports a total of three displays, including the main display and customer display and digital signage via the HDMI port.
Blazing Speed & Performance
Powered by Intel®'s 11th generation high-performance processor, Audrey II delivers powerful performance for more diversified applications and databases, including AI and computer vision applications. The Tiger Lake processor combined with a M.2 PCIe solid-state drive and up to 32 GB DDR4 RAM memory ensures that Audrey II has the capacity to run the most data intensive POS applications for many years to come.
Built for POS with Many Interfaces
Audrey II offers even more interface options than the previous generation, including support for the more powerful Type-C USB connector. All connectors are protected by a cover to shield the computer from dust and dirt. Audrey II is also available with the EX-300 expansion I/O box that further expands the connectivity options and the ability communicate with more peripherals.
Customize With Peripherals
Audrey II comes with a large selection of peripherals that allows you to configure your POS terminal with different payment terminal brackets, fingerprint reader, EMV reader, MSR, camera, cash drawer, NFC/RFID-reader, customer display, extra digital display, printer, and barcode reader.
Customer Displays for All Your Needs
Flexible Mounting Solutions
The silver tabletop A-base comes as standard, but there are also other mounting solutions available, including the foldable T-base and other mounts with support for standard VESA, including wall mounts and pole mounts with the option of landscape or portrait mode.
Key Features
- Elkhart Lake/ 11th Tiger Lake UP3 CPU
- 15.6”oTP(On-cell Touch Panel) 1920×1080
- Slimmest Edge Bezel Design (7mm)
- Support Wifi 6E
- Support Type C
- Support Intel vPro for Core i5, Core i7 CPU; TPM 2.0
- Support Windows 11 IoT Enterprise GAC
Optional Features
- Encryption-capable MSR, EMV reader, Bio reader,NFC, iButton, Camera, 2D BCR
- VFD, 10.1″, 11.6″, 15″ guest facing display
- EX-300 Expansion I/O BOX
Interested in Partner Tech Products?
| Item | A5-2-T | A5-2-E | A5-2-N |
|---|---|---|---|
| Size | 15.6" | 15.6" | 15.6" |
| Aspect Ratio | 16:9 | 16:9 | 16:9 |
| Resolution | 1920 x 1080 | 1920 x 1080 | 1920 x 1080 |
| Brightness | 400 nits | 400 nits | 400 nits |
| Touch | oTP (On-cell Touch Panel), Slim-Edge 7mm Bezel Design (w/Anti-Glare) | oTP (On-cell Touch Panel), Slim-Edge 7mm Bezel Design | oTP (On-cell Touch Panel), Slim-Edge 7mm Bezel Design |
| CPU | (Tiger Lake UP3) Intel® Core™ i3-1115G4 Intel® Core™ i5-1145G7, vPro Intel® Core™ i7-1185G7, vPro |
Intel® Celeron® J6412 (Elkhart Lake) | (Alder Lake-N) Intel® Processor N97 Intel® Core™ i3-N305 |
| Memory | DDR4 4GB, 8GB, 16GB, 32GB | DDR4 4GB, 8GB, 16GB, 32GB | DDR4 4GB, 8GB, 16GB |
| Storage | M.2 PCIe SSD: 128G / 256G / 512G | M.2 PCIe SSD: 128G / 256G / 512G | M.2 PCIe SSD: 128G / 256G / 512G |
| I/O Interface | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) |
| 1 x Intel LAN(IEEE 802.3 10/100/1000 Mbps) | 1 x LAN(IEEE 802.3 10/100/1000 Mbps) | 1 x LAN(IEEE 802.3 10/100/1000 Mbps) | |
| 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | |
| 1 x DC +12V out | 1 x DC +12V out | 1 x DC +12V out | |
| 4 x USB 3.2 + 2 x USB 2.0 | 2 x USB 3.2 + 4 x USB 2.0 | 6 x USB 3.2 | |
| 1 x DC + 12V input | 1 x DC + 12V input | 1 x DC + 12V input | |
| 1 x audio (1 x line-out) | 1 x audio (1 x line-out) | 1 x audio (1 x line-out) | |
| 1 x HDMI | 1 x HDMI | 1 x HDMI | |
| 1 x Type-C (data transfer+ display) | 1 x Type-C (data transfer only) | 1 x Type-C (data transfer + display + Power Delivery) | |
| Speaker | 1 x speaker (3W) | 1 x speaker (3W) | 1 x speaker (3W) |
| Peripheral Options | MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box (EX-100, EX-101, EX-300), cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) EX-100, EX-101 for A Base only |
MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box (EX-100, EX-101, EX-300), cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) EX-100, EX-101 for A Base only |
MSR, EMV reader, fingerprint reader, RFID/ NFC, i-Button, VFD, USB 2nd display, HDMI 2nd display, 2D bar code scanner, camera, IO extension box (EX-100, EX-101, EX-300), cash drawer, PS-103 Cosmo printer stand (space-saving stand, compatible with RP-700 or Epson TM-T70 II) EX-100, EX-101 for A Base only |
| Wireless Option | Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 |
Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 |
Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.3 |
| Display Support | 3 independent displays (Main Display + HDMI + Type-C) | 2 independent displays (Main Display + HDMI) | 2 independent displays (Main Display + HDMI) |
| Spill & Dust Resistant | Whole unit IP54 certified | Whole unit IP54 certified | Whole unit IP54 certified |
| Operating System | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) | 1. Windows 11 IoT Enterprise LTSC 24H2 (64bit) |
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | |
| 3. Linux Ubuntu 22.04 | 3. Linux Ubuntu 22.04 | 3. Linux Ubuntu 22.04 | |
| TPM & vPro | 1. Intel vPro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) | S/W TPM 2.0 (BIOS) |
| 2. S/W TPM 2.0 (BIOS) | |||
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 65W | AC-In 100~240V / DC-Out 12V, 65W | AC-In 100~240V / DC-Out 12V, 65W |
| Reliability | System operating temperature: 0~40°C/ 32~104°F | System operating temperature: 0~40°C/ 32~104°F | System operating temperature: 0~40°C/ 32~104°F |
| System humidity: 15% ~ 80% | System humidity: 15% ~ 80% | System humidity: 15% ~ 80% | |
| Storage temperature: -20~60°C/-4~140°F | Storage temperature: -20~60°C/-4~140°F | Storage temperature: -20~60°C/-4~140°F | |
| Dimensions (Wx Hx D) | With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in With A Base: 364 x 288 x 201 mm / 14.33 x 11.34 x 7.91 in |
With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in With A Base: 364 x 288 x 201 mm / 14.33 x 11.34 x 7.91 in |
With T Base: 364 x 252 x 223 mm / 14.33 x 9.92 x 8.78 in With A Base: 364 x 288 x 201 mm / 14.33 x 11.34 x 7.91 in |
| Weight | With T Base: 3.7 kg / 8.16 Ib With A Base: 5.4 kg / 11.9 Ib |
With T Base: 3.7 kg / 8.16 Ib With A Base: 5.4 kg / 11.9 Ib |
With T Base: 3.7 kg / 8.16 Ib With A Base: 5.4 kg / 11.9 Ib |
