HomeCLEO C14-1E

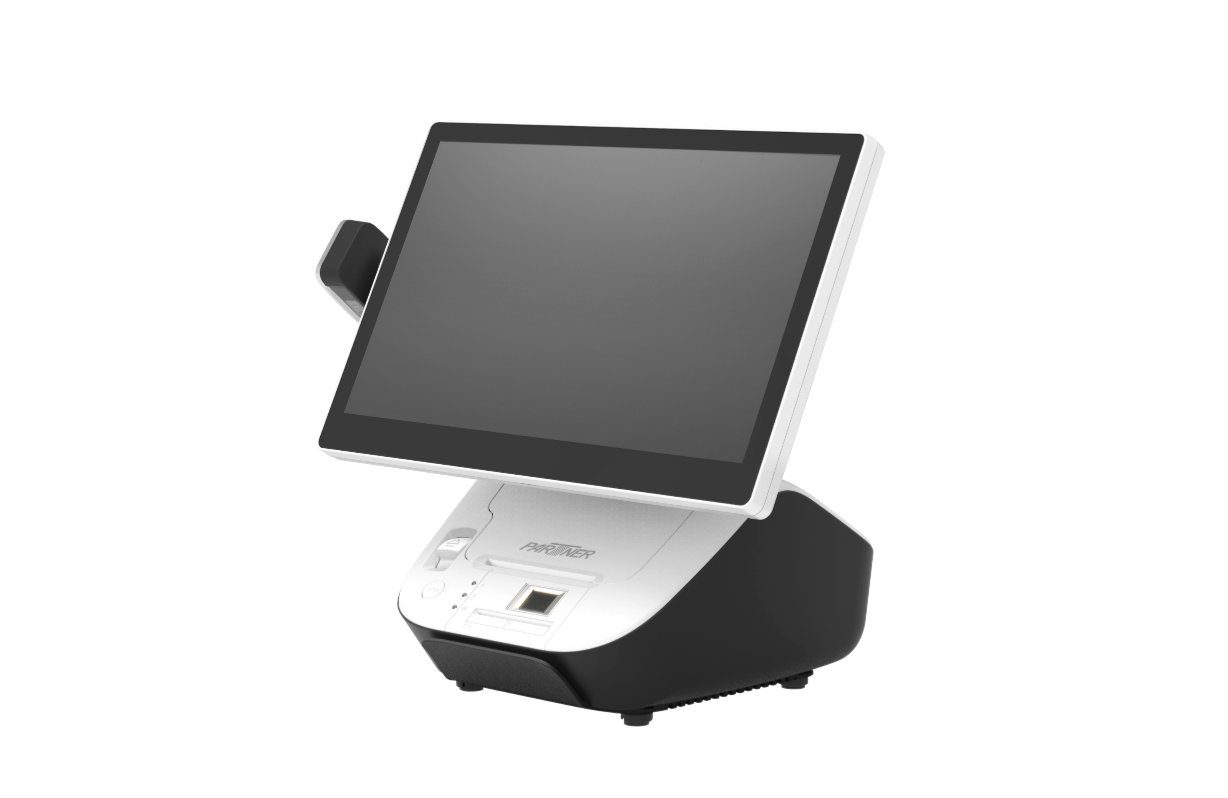

All-in-one POS terminal with a 14.1-inch touch display, packed with power in a compact and modern form factor. It provides an excellent value – no matter if you operate a cafe or a large retail or restaurant chain.
SHARE
OVERVIEW
Same Base. Different Screen Size.
Cleo C14 is a plug-and-play, all-in-one POS terminal with a 14.1-inch PCAP touch display and an integrated receipt printer. The compact and sleek design makes this an ideal POS solution in stores and cafes with limited counter space.
Second Customer-Facing Display
Bring customer interaction to the next level and enable customers to keep track of their purchases with a second customer-facing display. C14 supports use of a 10.1″ second display with a special mounting kit that elegantly attach it to the back of the terminal. The Elkhart Lake version of the terminal allows for a third display such as a digital to be connected via the HDMI port.
Safely Integrated Peripherals
Cleo comes with an integrated lockable 3-inch thermal printer and Partner Tech offers several optional peripherals that allows you to customize it for your needs.A broad selection of interface options ensures you can easily connect all your POS peripherals.
Choose between the following peripherals:
- 2D barcode scanner
- 5MP camera
- Finger print reader
- NFC reader
- MSR
- EMV reader
- 10.1-inch customer-facing display
Power & Speed
Powered by an Intel Elkhart Lake processor and equipped with a M.2 PCle solid-state drive and DDR4 RAM memory, Cleo can handle most of the most demanding applications and databases.
Key Features
- Compact all-in-one design
- Available with 14.1″ PCAP touch display
- Intel Elkhart Lake processor
- High speed M.2 SSD for maximum performance and reliability
- Up to 16 GB DDR4 RAM
Optional Features
- Available for Windows 10, Windows 11, and Ubuntu
- MSR, EMV reader, finger print reader and NFC reader
- 5MP camera and 2D barcode scanner
- 10.1″ customer display (CD-101C)
- Optional Wi-Fi and BT connectivity
Interested in Partner Tech Products?
| Item | C14-1E (Elkhart Lake) |
| Size | 14.1″ |
| Aspect Ratio | 16:9 |
| Resolution | 1366 x 768 |
| Brightness (typical) | 220 nits |
| Touch | PCAP touch |
| CPU | Intel® Celeron® Processor J6412 (Elkhart Lake) |
| Memory | DDR4 4GB, 8GB, 16GB |
| Storage | M.2 PCIe SSD: 128G / 256G / 512G |
| External I/O Interfaces | 4 x USB 3.2 + 2 x USB 2.0 |
| 4 x Serial ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3, COM4) | |
| 1 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | |
| 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | |
| 1 x Audio (1 x line out) | |
| 1 x HDMI 2.1 | |
| 1 x DC +24V input | |
| Speaker | 1 x speaker (3W) |
| Printer | 3" thermal printer |
| Peripherals (optional) | MSR, EMV Reader, finger print reader, NFC reader |
| 2D barcode scanner | |
| 5MP camera | |
| Customer-facing display (CD-101C) | |
| Wi-Fi/ BT (optional) | Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2 |
| Display Support | 3 Independent Displays (Main Display + HDMI + CD-101C ) |
| Operating System | Windows 11 IoT Enterprise GAC (64bit) |
| Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version | |
| Ubuntu 22.04 | |
| TPM | H/W TPM 2.0 |
| Power Adaptor | AC-In 100~240V / DC-Out 24V,72W |
| Reliability | System Operating Temperature: 0~104°F/ 0~40°C |
| System Humidity: 15% ~ 80% | |
| Storage Temperature: -4~140°F/ -20~60°C | |
| Dimensions | 13.41″ (W) x 12.41″ (H) x 9.73″ (D) / 341 mm (W) x 315 mm (H) x 247.13 mm (D) |
| Weight | 8.82 Ibs / 4 kg |
