為您的客戶提供便利的自助服務
提供自助式KIOSK，讓您的顧客免於長時間排隊等候。Alfred AD-156自助式KIOSK搭配觸控螢幕，提供工業級性能和高品質設計，讓顧客在各種環境中享有高效且互動式的客戶體驗。
- 減少排隊和等待的時間
- 增加尖峰時段的容客量
- 提供客戶自行操控的權力
- 提高訂單準確性

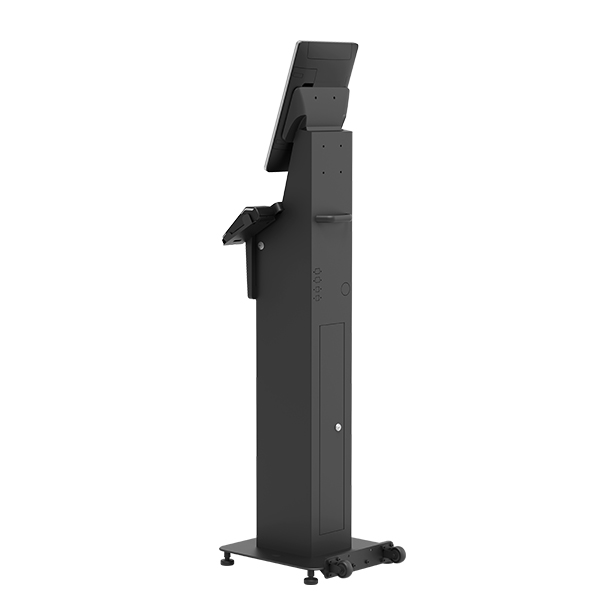

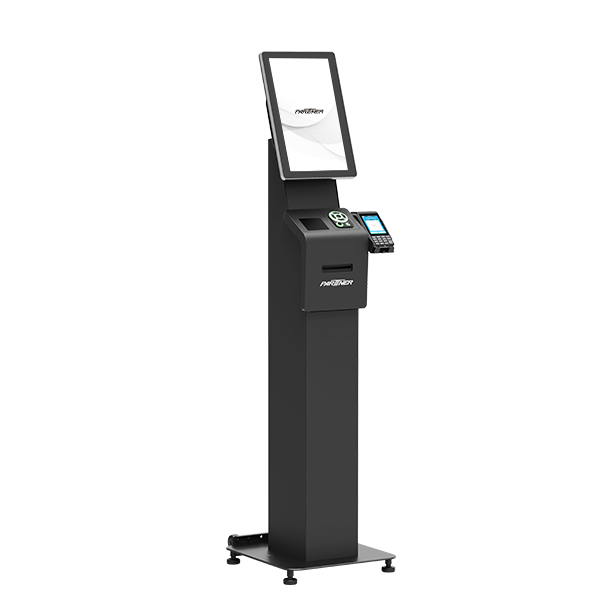

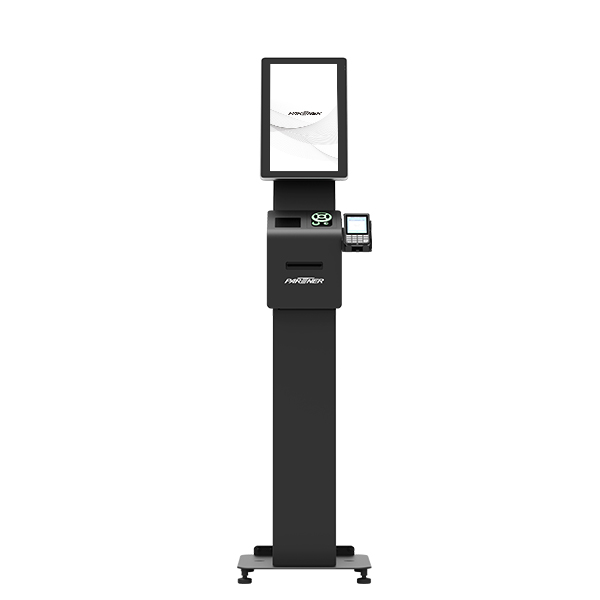

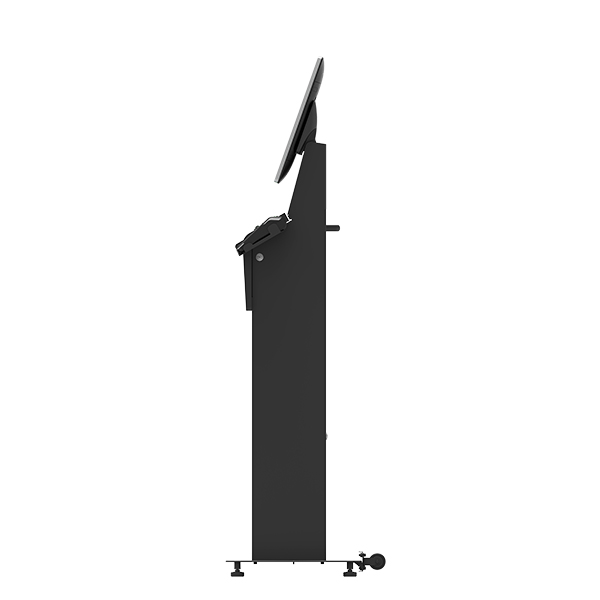

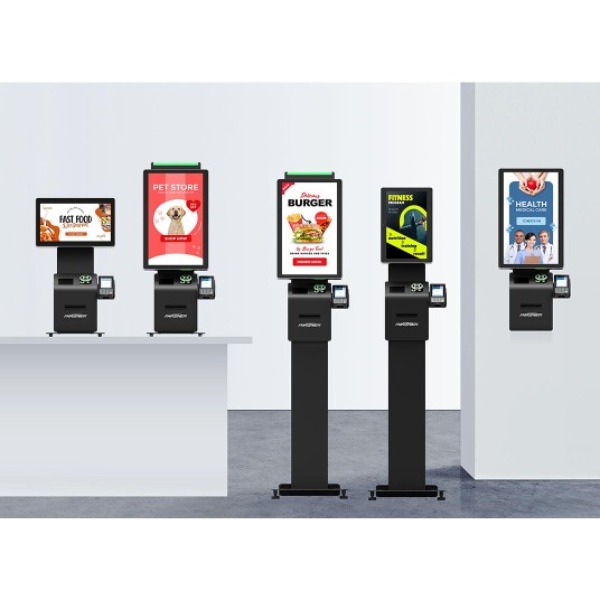

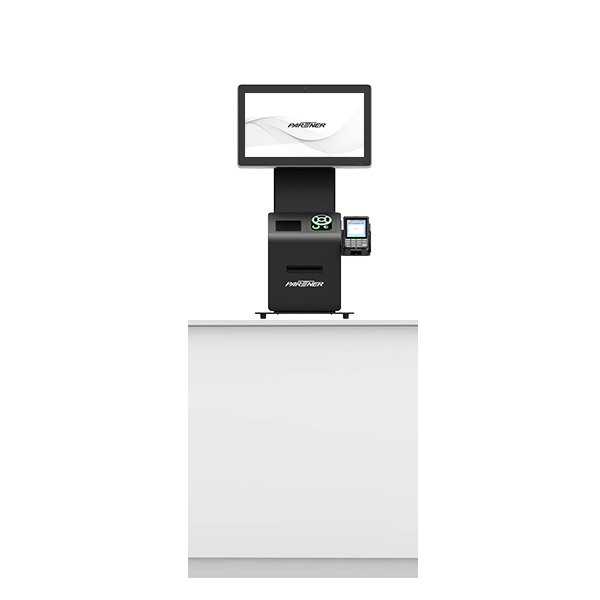

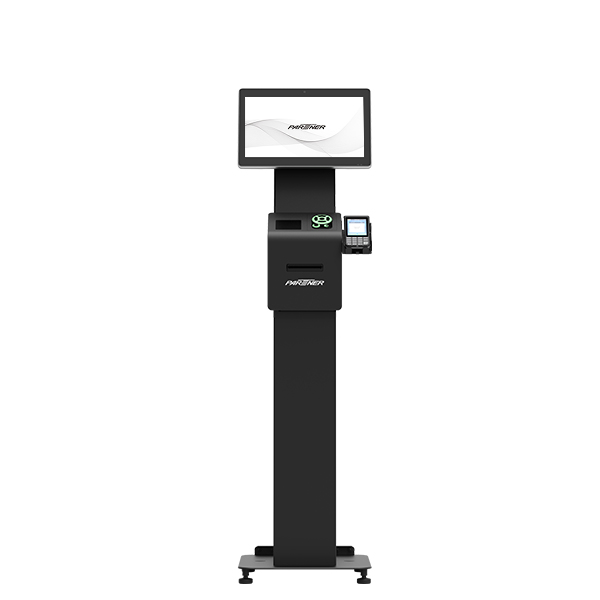

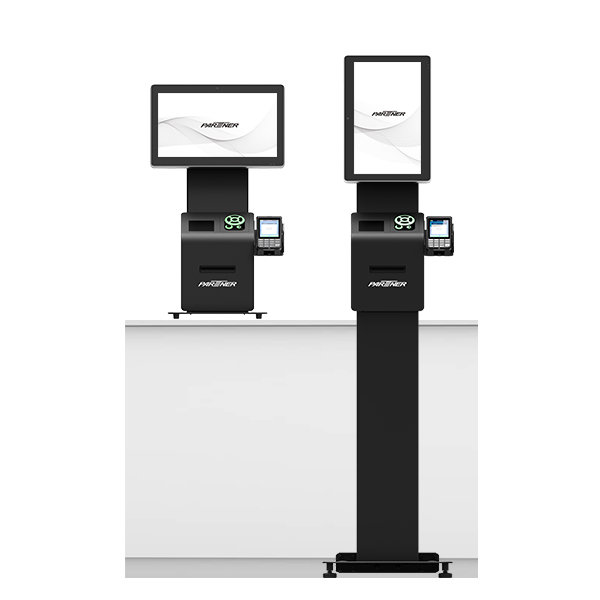

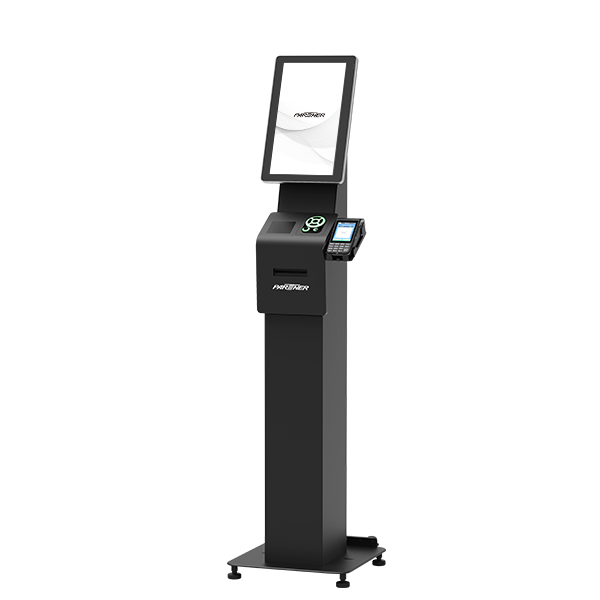

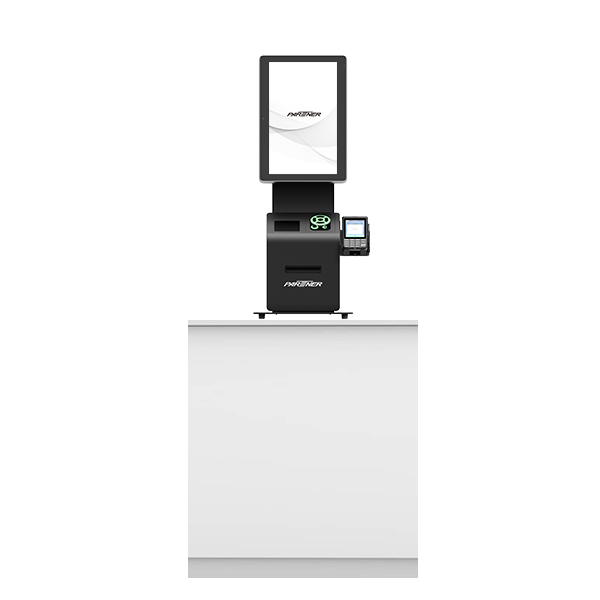

落地或桌上型，任你選擇
在許多零售環境中，地面空間是寶貴的，空間有限。這就是為什麼我們設計佔用最少空間的Alfred AD-156。可依據您的空間需求選擇落地式桌上型版本，並提供VESA壁掛支架。
耐用的設計搭配多款周邊

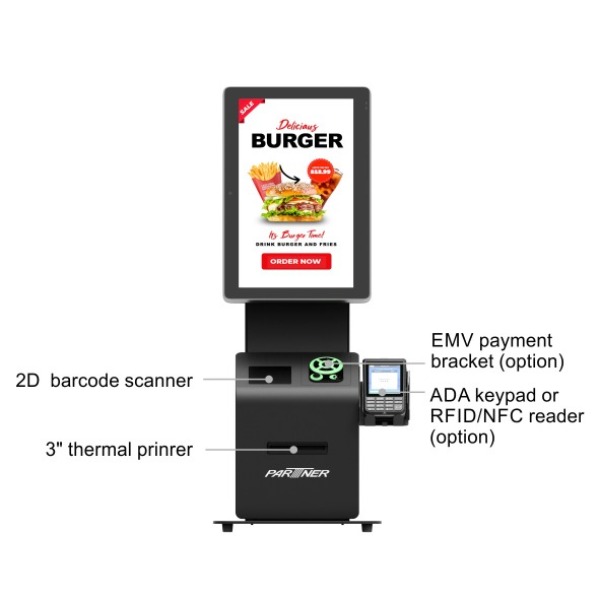

為滿足您的特定需求，Alfred AD-156提供多款周邊可供您配置: 信用卡刷卡機支架、3”熱感印表機、條碼掃描器、RFID 感應器、相機和 ADA 鍵盤等多樣周邊設備，以構建您所需的解決方案。所有周邊設備均專為商業用途而設計。

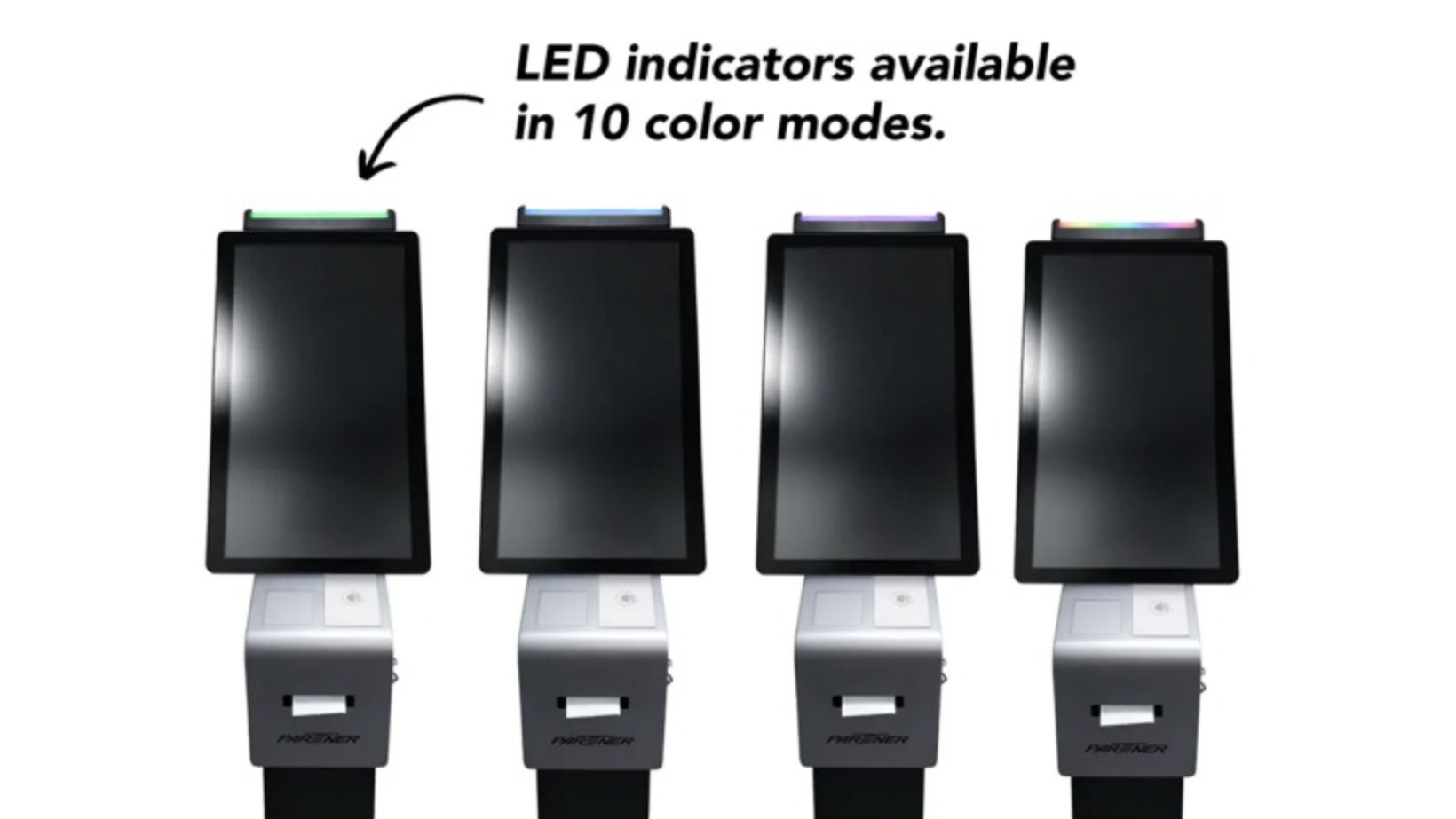

彩色LED指示燈
可自訂的 LED 燈光為自助結帳機增添了時尚感，但更重要的是它可以傳達自助結帳機的狀態（例如，自助結帳機是開啟/關閉的，客戶需要幫助），這樣工作人員就可以快速反應並幫助需要協助的客戶。提供 10 種顏色模式可供選擇。
產品特點
- 15” Full HD顯示器
- 高效率快速的Intel Kaby Lake i3 and i5
- 極致強大效能M.2 SSD
- 支援Windows 和 Android 系統
- 區域網路、WiFi和藍芽(選配)
- 嵌入式3" 熱感印表機及條碼掃描器
- 符合ADA標準
可選配置
- Available with several different payment brackets
- RFID 感應器
- 相機
- ADA 鍵盤
- 彩色 LED 指示燈
- UVC紫外線自動測溫+消毒
對拍檔產品有興趣嗎?
| Item | AD-156 | |||
|---|---|---|---|---|
| Display | 15.6" 16:9 1366 x 768 (220 nits), 15.6" 16:9 1920 x 1080 (400 nits) Options |
|||
| Touch | PCAP Touch | |||
| CPU | AlderLake-P | Elkhart Lake | KabyLake-U |
Rockchip RK3399 |
| Intel® Celeron® 7305 | Intel® Celeron® J6412 | Intel® Core™ i3-7100U |
||
| Intel® Core™ i3-1215U | Intel® Core™ i5-7300U |
|||
| Intel® Core™ i5-1245U, vPro | ||||
| Intel® Core™ i7-1265U, vPro | ||||
| Memory | DDR4 4GB, 8GB, 16GB, 32GB | LDDR4 4GB | ||
| Storage | M.2 PCIe SSD: 128G / 256G / 512G | eMMC 32GB + 1x Micro SD Card Slot (up to 128GB) | ||
| I/O Interface | 3 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | 2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) |
2 x serial ports, RS-232 (RJ45), 0V/5V/12V selected in setting (COM1, COM2) | |
| 1 x Intel LAN(IEEE 802.3 10/100/1000 Mbps) | 2 x LAN(IEEE 802.3 10/100/1000 Mbps) | 1 x LAN(IEEE 802.3 10/100/1000 Mbps) | ||
| 4 x USB 3.2 + 2 x USB 2.0 | 3 x USB 3.2 + 3 x USB 2.0 | 4 x USB 3.0 | 1 x RJ11 port supports 2 cash drawer with 24V / 12V by jumper setting | |
| 1 x Type-C (data transfer + display) | 1 x VGA | 1 x DC + 12V out | ||
| 1 x RJ11 port support for 2 cash drawers with 24V / 12V jumper setting | 1 x USB3.0 (OTG) + 5 x USB2.0 | |||
| 1 x DC + 12V out | 1 x audio (1 x line-out) | |||
| 1 x DC + 12V input | 1 x HDMI | |||
| 1 x audio (1 x line-out) | 1 x Micro SD Card | |||
| 1 x HDMI | ||||
| Speaker | 1 x speaker (3W) | |||
| Printer | 3" Thermal Printer | |||
| Barcode Scanner | 2D barcode scanner | |||
| Optional Peripheral | MSR, EMV reader, fingerprint Reader, i-Button, UVC Light , LED Light Bar, Hand sanitizer dispenser | |||
| EMV Terminal Bracket | ||||
| 5MP Camera | ||||
| RFID/ NFC | ||||
| ADA Keypad | ||||
| Wheels kit: Two wheels & one handle | ||||
| Wi-Fi / BT (option) | Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.2 | Wi-Fi 6E Intel AX210, IEEE 802.11 a/b/g/n/acR2/axR2, BT 5.2 | 2.4GHz/5GHz (IEEE 802.11a/b/g/n/ac), BT 4.2 (supports BLE) | |
| Operating System | 1. Windows 11 IoT Enterprise GAC (64bit) ready | 1. Windows 10 IoT Enterprise LTSC 21H2 (64bit) |
Android 9.0 / Android 11 | |
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) | 2. Linux Ubuntu 18.04 | |||
| 3. Linux Ubuntu 22.04 | ||||
| TPM & vPro | 1. Intel vPro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) | 1. Intel vPro (i5 CPU only) |
N/A |
| 2. S/W TPM 2.0 (BIOS) | 2. S/W TPM 2.0 (BIOS) | |||
| Power Adaptor | AC-In 100~240V / DC-Out 12V, 120W | AC-In 100~240V / DC-Out 12V, 90W | AC-In 100~240V / DC-Out 12V, 120W | AC-In 100~240V / DC-Out 12V, 90W |
| Reliability | System operating temperature: 0~40°C/ 32~104°F | |||
| System humidity: 15% ~ 80% | ||||
| Storage temperature: -20~60°C/-4~140°F | ||||
| Dimensions (Wx Hx D) | 380 x 1511 x 401 mm/ 14.96 x 59.49 x 15.79 in (Floor Stand) | |||
