HomeGrace G4
Inspired by Latin "gratia (favor and thanks)", Grace Series reveals her thin and light form with powerful performance in the most up-to-date design.
SHARE
OVERVIEW
FIT & SLIM
The GRACE G4 features an ultra-slim and sleek look that exhibits elegance. It can be perfectly sized for sitting on a counter or in areas where you're tight on space.
SUPPORTS UP TO 3 DISPLAYS
The Terminal supports up to three displays running simultaneously which means that next to the standard second customer display a third monitor for digital signage can be connected.

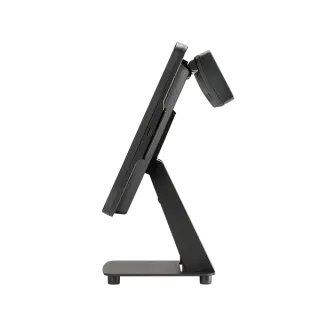

FLIP-OVER DESIGN
Adjustable viewing angles meet the needs of cashiers and customers. The bi-directional rotatable display makes it easy for employees to quickly show digital content to customers, allowing customers to take actions in real-time. The display further increases marketing initiatives by allowing customer-focused, personalized services.
Collapsible Folding Base
Partner Tech has revolutionized the GRACE base's design so it is foldable and reduced shipping costs.
Key Features
- Bezel-Free 15" screen with PCAP touch
- Fanless design with powerful Intel Latest Kaby Lake/ Apollo platform
- High speed M.2 SSD
- Support up to 3 independent displays (operation, guest facing display and digital signage)
- Foldable Base with various monitor position to accommodate counter design
- Dual LAN for IoT applications
Optional Features
- Optional peripherals: MSR, IC Card Reader, Fingerprint, RFID, i-Button
- VFD
- USB 2nd Display
- HDMI 2nd Display
- SCN-300
- Camera-300
- EX-100
- EX-101
- EX-300
- UVC Light
Interested in Partner Tech Products?
| Item | G4-1-AL | G4-1-E | G4-1-K | G4-1-A | G4-1-B |
| Size | 15" | 15" | 15" | 15" | 15" |
| Aspect Ratio | 4:3 | 4:3 | 4:3 | 4:3 | 4:3 |
| Resolution | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1024 x 768 | 1024 x 768 |
| Brightness (typical) | 350 nits | 350 nits | 350 nits | 350 nits | 350 nits |
| Touch | PCAP Touch | PCAP Touch | PCAP Touch | PCAP Touch | PCAP Touch |
| CPU | Intel® Celeron® 7305E (Alder Lake-P) Intel® Core™ i3-1215UE (Alder Lake-P) Intel® Core™ i5- i5-1245UE, vPro (Alder Lake-P) Intel® Core™ i7-1265UE, vPro (Alder Lake-P) | Intel® Celeron® J6412 (Elkhart Lake) | Intel® Core™ i3-7100U (Kaby Lake-U) Intel® Core™ i5-7300U (Kaby Lake-U) | Intel® Celeron® J3455 (Apollo Lake) | Intel® Celeron® J1900 (Bay Trail) |
| Memory | DDR4 4GB, 8GB, 16GB, 32GB | DDR4 4GB, 8GB, 16GB, 32GB | DDR4 4GB, 8GB, 16GB, 32GB | DDR3L 4GB, 8GB | DDR3L 4GB, 8GB |
| Storage | M.2 PCIe SSD: 128G / 256G / 512G | M.2 PCIe SSD: 128G / 256G / 512G | M.2 PCIe SSD: 128G / 256G / 512G | M.2 SATA SSD: 128G / 256G | M.2 SATA SSD: 128G / 256G |
| External I/O Interface | 3 x Serial Ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | 3 x Serial Ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) | 2 x Serial Ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) | 2 x Serial Ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2) | 3 x Serial Ports, RS232 (RJ45), 0V/5V/12V selected in BIOS (COM1, COM2, COM3) |
| 1 x Intel LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | 1 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | 2 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | 2 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | 1 x LAN (IEEE 802.3 10/100/1000 Mbps Ethernet, RJ45) | |
| 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | 1 x RJ11 port with support for 2 cash drawers with 24V / 12V jumper setting | |
| 1 x DC+ out 12V | 1 x DC+ out 12V | 1 x DC+ out 12V | 1 x DC+ out 12V | 1 x DC+ out 12V | |
| 4 x USB 3.2 + 2 x USB 2.0 | 3 x USB 3.2 + 3 x USB 2.0 | 4 x USB 3.0 | 4 x USB 3.0 | 1 x USB 3.0 + 3 x USB 2.0 | |
| 1 x DC +12V input | 1 x DC +12V input | 1 x DC +12V input | 1 x DC +12V input | 1 x DC +12V input | |
| 1 x Audio (1 x line-out) | 1 x Audio (1 x line-out) | 1 x Audio (1 x line-out) | 1 x Audio (1 x line-out) | 1 x Audio (1 x line-out) | |
| 1 x HDMI | 1 x HDMI | 1 x HDMI | 1 x HDMI | 1 x HDMI | |
| 1 x Type C (Data Transfer+Display) | 1 x Type C (Data Transfer+Display) | 1 x VGA | 1 x VGA | 1 x VGA | |
| Speaker | 1 x Speaker (3W) | 1 x Speaker (3W) | 1 x Speaker (3W) | 1 x Speaker (3W) | 1 x Speaker (3W) |
| Peripheral Options | MSR, IC Card Reader, Fingerprint, RFID, i-Button, VFD, USB 2nd Display, HDMI 2nd Display, SCN-300, Camera-300, EX-100, EX-101, EX-300, UVC Light | MSR, IC Card Reader, Fingerprint, RFID, i-Button, VFD, USB 2nd Display, HDMI 2nd Display, SCN-300, Camera-300, EX-100, EX-101, EX-300, UVC Light | MSR, IC Card Reader, Fingerprint, RFID, i-Button, VFD, USB 2nd Display, VGA/HDMI 2nd Display, SCN-300, Camera-300, EX-100-G, EX-101-G, EX-300, UVC Light | MSR, IC Card Reader, Fingerprint, RFID, i-Button, VFD, USB 2nd Display, VGA/HDMI 2nd Display, SCN-300, Camera-300, EX-100-G, EX-101-G, EX-300, UVC Light | MSR, IC Card Reader, Fingerprint, RFID, i-Button, VFD, USB 2nd Display, VGA/HDMI 2nd Display, SCN-300, Camera-300, EX-100-G, EX-101-G, EX-300, UVC Light |
| Wireless (option) | Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2 | Wi-Fi 6E Intel AX210 IEEE 802.11 a/b/g/n/acR2/axR2, BT5.2 | Wi-Fi 5 Intel AC 8265 IEEE 802.11 a/b/g/n/ac, BT4.2 | Wi-Fi 5 Intel AC 8265 IEEE 802.11 a/b/g/n/ac, BT4.2 | Wi-Fi 5 Intel AC 8265 IEEE 802.11 a/b/g/n/ac, BT4.2 |
| Display Support | 3 Independent Displays (Main Display + HDMI + Type C) | 3 Independent Displays (Main Display + HDMI + Type C) | 3 Independent Displays (Main Display + HDMI + VGA) | 3 Independent Displays (Main Display + HDMI + VGA) | 3 Independent Displays (Main Display + HDMI + VGA) |
| Spill & Dust Resistant | IP54 Certified | IP54 Certified | IP54 Certified | IP54 Certified | IP54 Certified |
| Operation System | 1. Windows 11 IoT Enterprise GAC (64bit) | 1. Windows 11 IoT Enterprise GAC (64bit) | 1. Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version | 1. Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version | 1. POS Ready7 (32bit & 64bit) |
| 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version | 2. Windows 10 IoT Enterprise LTSC 21H2 (64bit) and newer version | 2. Ubuntu 18.04 | 2. Ubuntu 18.04 | 2. Windows 10 IoT Enterprise (32bit / 64bit) | |
| 3. Ubuntu 22.04 | 3. Ubuntu 22.04 | | 3. Ubuntu 18.04 | ||
| Software | 1. Intel V-Pro (i5/i7 CPU only) | S/W TPM 2.0 (BIOS) | 1. Intel V-Pro (i5 CPU only) | S/W TPM 2.0 (BIOS) | N/A |
| 2. S/W TPM 2.0 (BIOS) | 2. S/W TPM 2.0 (BIOS) | ||||
| Power Supply | AC-In 100~240V / DC-Out 12V, 90W | AC-In 100~240V / DC-Out 12V, 65W / 90W | AC-In 100~240V / DC-Out 12V, 65W / 90W | AC-In 100~240V / DC-Out 12V, 65W / 90W | AC-In 100~240V / DC-Out 12V, 65W / 90W |
| Reliability | System Operating Temperature: 0~40°C/ 0~104°F | System Operating Temperature: 0~40°C/ 0~104°F | System Operating Temperature: 0~40°C/ 0~104°F | System Operating Temperature: 0~40°C/ 0~104°F | System Operating Temperature: 0~40°C/ 0~104°F |
| System Humidity: 15% ~ 80% | System Humidity: 15% ~ 80% | System Humidity: 15% ~ 80% | System Humidity: 15% ~ 80% | System Humidity: 15% ~ 80% | |
| Storage Temperature: -20~60°C | Storage Temperature: -20~60°C | Storage Temperature: -20~60°C | Storage Temperature: -20~60°C | Storage Temperature: -20~60°C | |
| Dimensions (Wx Hx D) | Standing + G Base: 360 x 377 x 184 mm Standing + T Base: 360 x 320 x 224 mm | Standing + G Base: 360 x 377 x 184 mm Standing + T Base: 360 x 320 x 224 mm | Standing + G Base: 360 x 377 x 184 mm Standing + T Base: 360 x 320 x 224 mm | Standing + G Base: 360 x 377 x 184 mm Standing + T Base: 360 x 320 x 224 mm | Standing + G Base: 360 x 377 x 184 mm Standing + T Base: 360 x 320 x 224 mm |
| Weight | Fold + G Base: 6.3 kgs Standing + G Base: 6 kgs Standing + T Base: 5.2 kgs | Fold + G Base: 6.3 kgs Standing + G Base: 6 kgs Standing + T Base: 5.2 kgs | Fold + G Base: 6.3 kgs Standing + G Base: 6 kgs Standing + T Base: 5.2 kgs | Fold + G Base: 6.3 kgs Standing + G Base: 6 kgs Standing + T Base: 5.2 kgs | Fold + G Base: 6.3 kgs Standing + G Base: 6 kgs Standing + T Base: 5.2 kgs |
